SMD 3225 VCXO With CMOS Output 3.3V ±50ppm -40~+85℃ For FPGA

Brand Name : SJK

Model Number : SJK-3S

Certification : SGS, RoHS, REACH

Place of Origin : China

MOQ : 3000pcs

Price : negotiable

Payment Terms : T/T

Supply Ability : 70KKpcs/M

Delivery Time : 4-6 wks

Packaging Details : 3Kpcs/Reel

Model : 3S Series (SMD 3225 VCXO)

Frequency range : 50~200MHz

Output type : CMOS

Supply voltage : 3.3V

Size : 3.2*2.5*0.95mm

Applications : PC, FPGA, DSP, Smart grid, SATA, SAS, etc

Contact Now

SMD 3225 VCXO With CMOS Output 3.3V ±50ppm -40~+85℃ For FPGA

Features of 3S Series SMD 3225 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

3225 size, 0.95mm hign SMD VCXO

CMOS output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, PC, FPGA, DSP, Smart grid, SATA, SAS, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 3S Series SMD 3225 VCXO

Item /Type	3S Series (SMD 3225 VCXO)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V
Frequency Range	50~200MHz
Supply Current	60mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	5ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Lineartiy	10% Max.
Phase Jitter (12KHz~20MHz)	1pS Max.
Packing Unit	3000pcs./Reel

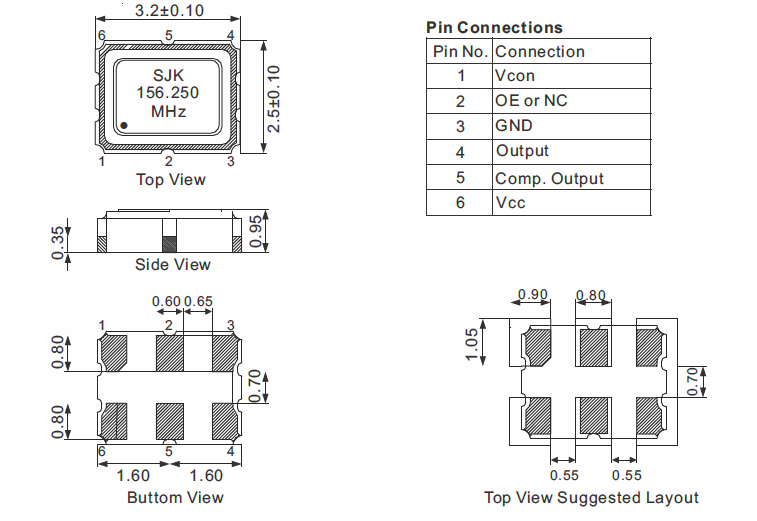

Dimensions[mm]

SMD 3225 VCXO With CMOS Output 3.3V ±50ppm -40~+85℃ For FPGA
